SGMAV 02A3A61 Industrial Servo Motor / Remote Control Servo Motor 3 Phase 200V 1.5A Ins B

AC Servo Motor SGMAV-02A3A61 PH 3 YASKAWA Servo Motor 200V 1.5A Ins B

QUICK DETAILS

1. Power : 200W
2. Voltage:200V
3. Rated Current : 1.5A

DESCRIPTION

• AC Servo Motor
• SGMAV Sigma-5
• YASKAWA ELECTRIC

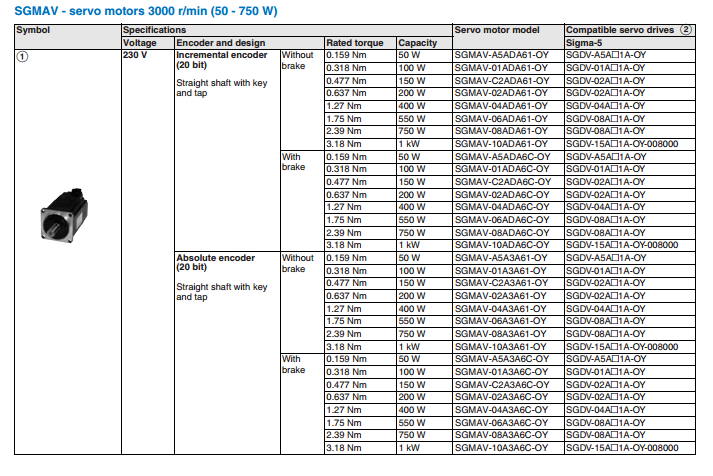

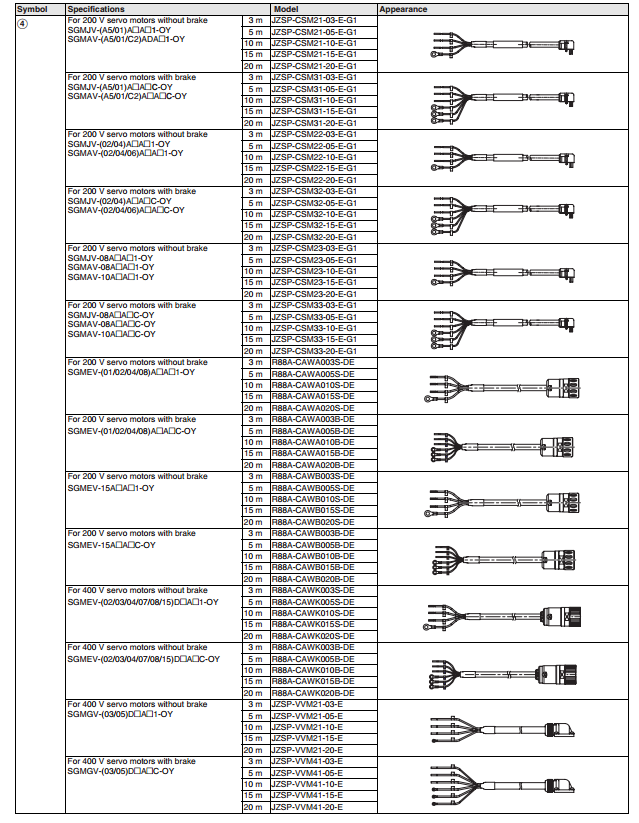

SEPCIFICATIONS

Installing the Servomotor

Servomotor SGM and SGMP types can be installed either horizontally or vertically. However, if the Servomotor is installed incorrectly or in an inappropriate location, the service life will be shortened or unexpected problems will occur. To prevent this, always observe the installation instructions described below.

Before installation:

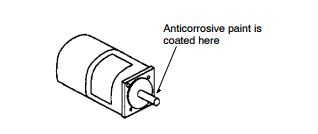

Anticorrosive paint is coated on the edge of the motor shaft. Clean off the anticorrosive paint           thoroughly using a cloth moistened with thinner.

NOTE

Avoid getting thinner on other parts of the Servomotor when cleaning the shaft.

Storage:

When the Servomotor is to be stored with the power cable disconnected, store it in the following temperature range:

                      Between −20°C and 60°C

Installation sites:

The Servomotor SGM and SGMP types are designed for indoor use.

Install Servomotor in an environment which meets the following conditions:

1. Free from corrosive and explosive gases
2. Well-ventilated and free from dust and moisture
3. Ambient temperature of 0 to 40°C
4. Relative humidity of 20% to 80% (non-condensing)
5. Inspection and cleaning can be performed easily

If the Servomotor is used in a location subject to water or oil mist, install a shield cover over the Servomotor.
