MITSUBISHI 0.75kw servo motor HF-KN73J-S100 Industrial electric motors New original
Models of HF-KN73 Series Servo motors
Mitsubishi HF-KN73
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A
Weight Standard:3.1-4.1 Kg
Mitsubishi HF-KN73K
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A
Weight Standard:3.1-4.1 Kg
Mitsubishi HF-KN73J
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A
Weight Standard:3.1-4.1 Kg
Mitsubishi HF-KN73B
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A
Weight Standard:3.1-4.1 Kg
Mitsubishi HF-KN73BK
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A
Mitsubishi HF-KN73BJ
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A
Weight Standard:3.1-4.1 Kg
Mitsubishi HF-KN73BJK
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A
Weight Standard:3.1-4.1 Kg
Specifications
| Output | 0.75 KW |
|---|
| Maximum torque | 7.2 Nm |
|---|
| Rated Speed | 3000 1/min |
|---|
| Max speed | 4500 1/min |
|---|
| Rotor inertia | 0.000143-0.000163 kg.m² |
|---|
| Rated Current | 4.8 A |
|---|
| Max. Current | 14 A |
|---|
| Weight | 3.1-4.1 Kg |
|---|
| Rated Torque | 2.4 Nm |
|---|
Models of HF-KN Series I ndustrial Servo Motors
| 0.1KW | HF-KN13J-S100 | 0.5KW | HF-SN52J-S100 |
| | MR-JE-10A | | MR-JE-70A |
| | MR-ECN1 | | MR-ECN1 |
| | MR-J3ENCBL5M-A1-L | | MR-J3ENSCBL5M-L |
| | MR-PWS1CBL5M-A1-L | | MR-PWCNS4 |
| | MR-ECNP1-B | | MR-ECNP1-B |
| | MR-ECNP2-B | | MR-ECNP2-B |
| 0.2KW | HF-KN23J-S100 | 1KW | HF-SN102J-S100 |
| | MR-JE-20A | | MR-JE-100A |
| | MR-ECN1 | | MR-ECN1 |
| | MR-J3ENCBL5M-A1-L | | MR-J3ENSCBL5M-L |
| | MR-PWS1CBL5M-A1-L | | MR-PWCNS4 |
| | MR-ECNP1-B | | MR-ECNP1-B |
| | MR-ECNP2-B | | MR-ECNP2-B |
| 0.4KW | HF-KN43J-S100 | 1.5KW | HF-SN152J-S100 |
| | MR-JE-40A | | MR-JE-200A |
| | MR-ECN1 | | MR-ECN1 |
| | MR-J3ENCBL5M-A1-L | | MR-J3ENSCBL5M-L |
| | MR-PWS1CBL5M-A1-L | | MR-PWCNS4 |
| | MR-ECNP1-B | | MR-ECNP1-B1 |
| | MR-ECNP2-B | | MR-ECNP2-B1 |
| 0.75KW | HF-KN73J-S100 | 2KW | HF-SN202J-S100 |
| | MR-JE-70A | | MR-JE-200A |
| | MR-ECN1 | | MR-ECN1 |
| | MR-J3ENCBL5M-A1-L | | MR-J3ENSCBL5M-L |
| | MR-PWS1CBL5M-A1-L | | MR-PWCNS5 |
| | MR-ECNP1-B | | MR-ECNP1-B1 |
| | MR-ECNP2-B | | MR-ECNP2-B1 |
Models of HF-KN Series Servo motors
HF-KN13
HF-KN13B
HF-KN13J
HF-KN13J-S100
HF-KN13BJ-S100
HF-KN23
HF-KN23B
HF-KN23J
HF-KN23J-S100
HF-KN23BJ-S100
HF-KN43
HF-KN43B
HF-KN43J
HF-KN43J-S100
HF-KN43BJ-S100
HF-KN73
HF-KN73B
HF-KN73J
HF-KN73J-S100
HF-KN73BJ-S100

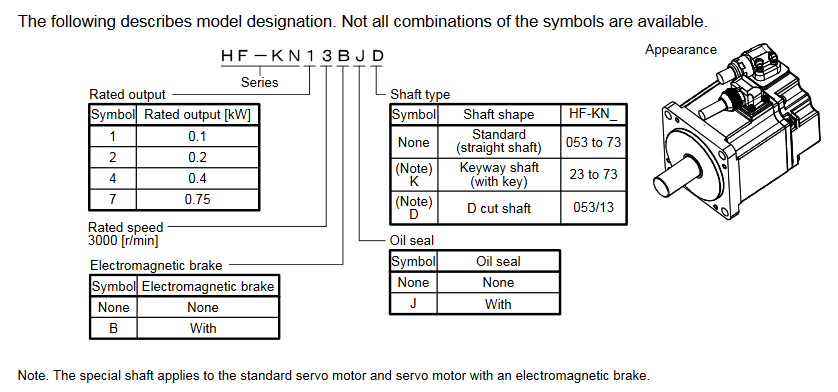

Model designation
Rating Plate

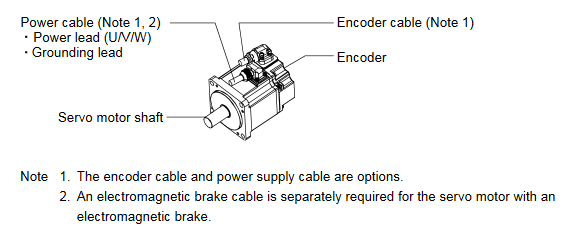

Parts identification
