500RPM 5500W Permanent Magnet Servo Motor SGMGH-55A2A-YR15 42.1AMP 200V

Brand Name : Yaskawa

Model Number : SGMGH-55A2A-YR15

Place of Origin : Japan

MOQ : 1

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100

Delivery Time : 2-3 work days

Packaging Details : New in original box

Brand : Yaskawa

Model : SGMGH-55A2A-YR15

Type : AC SERVO MOTOR

Power : 4400W

Volatge : 200V

Current : 45A

Ins : F

Contact Now

Industrial Servo Motor YASKAWA SERVO MOTOR SGMGH-55A2A-YR15 500RPM 5500W 42.1AMP 200V




QUICK DETAILS

· YASKAWA ELECTRIC

· SGMGH-55A2A-YR15

· SGMGH-55A2A-YR15

· SERVO MOTOR

· AC SERVO MOTOR

· 4400W

· 28.4N.m

· 45A

· 1500RPM

· 200V

· Ins F

· AVAILABLE

· REBUILT SURPLUS

· NEW SURPLUS

· REPAIR YOURS

· 24-48 HOUR RUSH REPAIR

· 2 - 15 DAY REPAIR

· 2 YEAR RADWELL WARRA











SIMILAR PRODUCTS
SGMG-55A2ABC
SGMG-60A2BBB
SGMG-60A2BBC
SGMG-75A2AAB
SGMG-75A2AB
SGMG-75A2ABC
SGMGH-03A2B2B
SGMGH-03ACB61
SGMGH-03ACB6C
SGMGH-05A2A2B
SGMGH-05A2A61
SGMGH-05A2ASC61
SGMGH-05ACA61 +SGDM-05ADA
SGMGH-05ACA6C
SGMGH-05ACC21
SGMGH-09A2A21
SGMGH-09ACA21
SGMGH-09ACA2B
SGMGH-09ACA2C
SGMGH-09ACA61
SGMGH-09ACA6B
SGMGH-09ACA6C
SGMGH-09ACB61
SGMGH-09ACB6B
SGMGH-09PCA-AM14
SGMGH-12A2B2
SGMGH-12A2B21
SGMGH-13A2A-YR13
SGMGH-13A2A-YR23
SGMGH-13A2A-YR23A
SGMGH-13A2A-YR24
SGMGH-13ACA
SGMGH-13ACA21
SGMGH-13ACA61

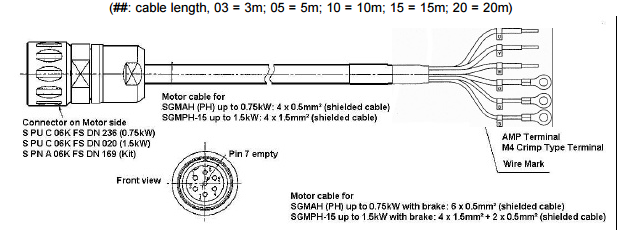

1.5.4 Motor Cable for Servomotors SGMAH / SGMPH 200V Series Part no: DP9325252-##G SGMAH, SGMPH-01Axx - SGMPH-08Axx DP9325254-##G SGMPH-15Axx (##: cable length, 03 = 3m; 05 = 5m; 10 = 10m; 15 = 15m; 20 = 20m)

500RPM 5500W Permanent Magnet Servo Motor SGMGH-55A2A-YR15 42.1AMP 200V

Terminal connection
No. Description Colour
1 Phase U Black (white 1)
2 Phase V Black (white 2)
3 Phase W Black (white 3)
4 free -
5 Free -
6 Frame ground Green/Yellow

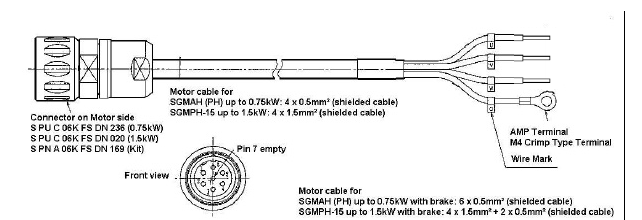

1.5.5 Motor Cable for Servomotors with Brake SGMAH / SGMPH 200 Series Part no: DP9325253-##G SGMAH, SGMPH-01AxxxC - SGMPH-08AxxxC DP9325255-##G SGMPH-15AxxxC (##: cable length, 03 = 3m; 05 = 5m; 10 = 10m; 15 = 15m; 20 = 20m)

500RPM 5500W Permanent Magnet Servo Motor SGMGH-55A2A-YR15 42.1AMP 200V
Terminal connection
No. Description Colour
1 Phase U Black (white 1)
2 Phase V Black (white 2)
3 Phase W Black (white 3)
4 Brake Black (white 4)
5 Brake Black (white 5)
6 Frame ground Green/Yellow

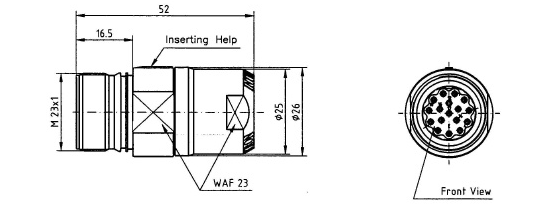

1.6 Specification of Encoder Connector 1.6.1 Encoder Connector (Encoder side) Part – No: S RU C 17G MR WN 087


500RPM 5500W Permanent Magnet Servo Motor SGMGH-55A2A-YR15 42.1AMP 200V




Specifications:
Poles: : 17
Temperature Range : -25°C up to 125°C
Cable Clamp : Æ5,5mm
Type of protection : IP67 connected
IP00 not connected



Electrical Performance:
Current Rating : 9A
Voltage Rating : 20 V
Test Voltage : 800V
Contact Resistance : < 5 mOhm
Mating Cycles : > 500


Materials:
Body : PA 6.6, glass-fiber reinforced
Insulator : PBT, glass-fiber reinforced
Contacts : Brass / Gold plated
Seals : FPM


Contacts:
Type : Pin Æ1 Pin Æ1
Part-No. : 021.311.1020 021.402.1020
Termination : Crimp Crimp
Crimp Range : 0.24 up 1.0mm² 0.05 up to 0.34mm²
Latch Retention : > 30N > 30N


Tools:
Crimping Tool Positioner Positioner
B 150 B 055/A B 055/A
B 161 B 200 ------------


Electrical datas (at 20°C) (0,25 mm²) (0,50 mm²)
Conductor resistance : £ 82,0 W/km : £ 41,0 W/km
Insulation resistance : > 200 MWxkm
Screen attenuation up to 30MHz : 45 dB (approxiamate value)
up to 1 GHZ : 30 dB (approxiamate value)
(Test methode acc. IEC 96-1 Amend. 2 (1993) A.5.6 „Line injection method“)
Test voltage (C/C) : 2,0 kVeff
(C/S) : 1,0 kVeff
Operating voltage : 300V
Operating current (single cable) at ambient temperature
0,35mm² 0,25mm²
20°C : £ 4,5 A ; : £ 2,2 A
30°C : £ 3,8 A ; : £ 1,9 A
40°C : £ 3,2 A ; : £ 1,6 A
50°C : £ 2,5 A ; : £ 1,2 A
60°C : £ 1,9 A ; : £ 0,9 A
70°C : £ 1,2 A ; : £ 0,6 A
Temperature range (Transport & storage) : -70°C bis + 90°C
(Installation & handling) : -40°C bis + 90°C
(Operating) : -20°C bis + 80°C
Bending radius (Operating) : ³ 3 x cable-Æ
(several times) : ³ 7,5 x cable-Æ
(several times optimum): ³ 10 x cable-Æ
Bending strength (r= 10 x cable-Æ at 20°C) : ³ 5.000.000 cycles
reduced working life at higher operating temperatures.
Oil resistance : acc. VDE 0282 part 10
Hydrolyse resistance : acc. VDE 0282 part 10
Flame resistance : acc. VDE 0472 part 804 condition B
Approbation : VDE-expert evidence (VDE-REG-Nr.6589)
The jacket surface has low adhesion, this prevents a stickness by contact.
All materials are halogenfree.
Applicable for use in flexible chain cable holder systems.
Not for use outdoor or in earth
When used as control cable the relevant installation and/or applicance standards have to be regarded.
