1 Channels Portable Peristaltic Pump Head YZ2515x -PESU High Temperature Resistance

Name: 1 Channels Portable Peristaltic Pump Head YZ2515x PESU High Temperature Resistance
Brand: Longer
Price: 1 USD

Buy cheap 1 Channels Portable Peristaltic Pump Head YZ2515x -PESU High Temperature Resistance product

Brand Name : Longer

Model Number : YZ1515x

Certification : CE

Place of Origin : China

MOQ : 1

Price : Contact us

Payment Terms : T/T / Paypal

Supply Ability : 50

Delivery Time : In Stock

Packaging Details : New Original Box

Category : Peristaltic Pump Head

Model 1. : YZ1515x

Model 2. : YZ2515x

temperature resistance : 200 °C

Flow rates : -≤2200ml/min

Max. Number of Channels : 1

Contact Now

LONGER Peristaltic Pump Head YZ1515x YZ2515x -PESU Servo Drive Pump head Basic Type

Quick Detail

YZ1515x,YZ2515x -PESU

Change tubing easily and rapidly; Automatic tubing retention; Suitable for several tubing sizes; The rollers

adopt high quality materials and has good wearing property; The housing of the pump head has perfect

rigidity and structure property, and its materials is PESU which has stable performance and high

temperature resistance (200 °C )

Flow rates:-≤2200ml/min

Max. Number of Channels:1

Product Features

1. Applications:

peristaltic pump head suitable for all kind of industry and lab

2. Product Instruction:

Change tubing easily and rapidly; Automatic tubing retention; Suitable for several tubing sizes; The rollers

adopt high quality materials and has good wearing property; The housing of the pump head has perfect

rigidity and structure property, and its materials is PESU which has stable performance and high

temperature resistance (200 °C )

Specification:

Model	Product Code	Roller Number	Roller Material	Housing Material	Speed (rpm)	Tubing	Max.Flowrat e(ml/min)	Weight(kg)
YZ1515x-A	05.01.52A	3	Stainless Steel	PESU	≤600	13# 14# 19# 16# 25# 17# 18#	2200 1600	0.5
YZ1515x-B	05.01.52B	6				13# 14# 19# 16# 25# 17# 18#
YZ2515x-A	05.01.53A	3				15# 24#

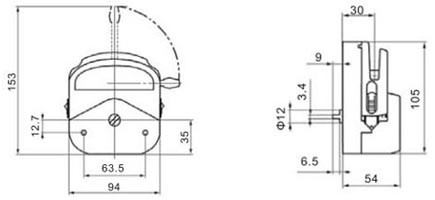

Dimensional Drawing:

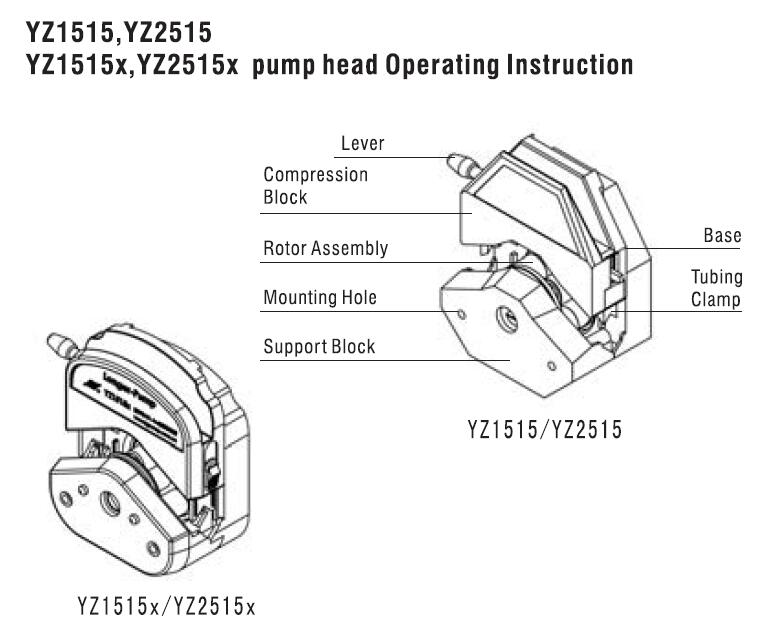

YZ1515x,YZ2515x pump head Operating Instruction

1 Channels Portable Peristaltic Pump Head YZ2515x -PESU High Temperature Resistance

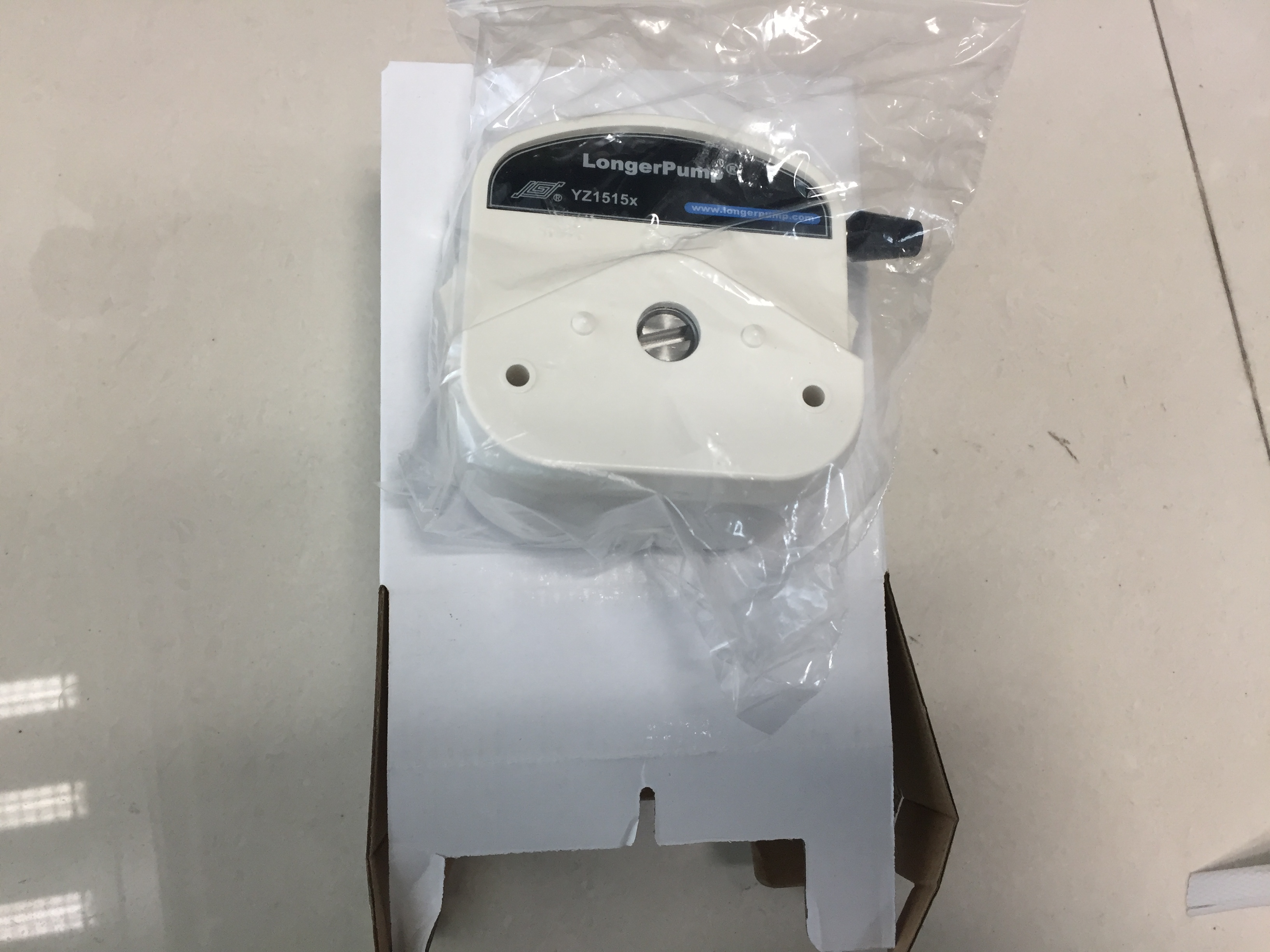

Pictures

Package

Liability:

WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.
