2711-B6C1 HMI Touch Screen AB Panelview 600 Operator Interface Panel 340KB Memory

Name: 2711B6C1 HMI Touch Screen AB Panelview 600 Operator Interface Panel 340KB Memory
Brand: Allen Bradley (AB)
Price: 1 USD

Buy cheap 2711-B6C1 HMI Touch Screen AB Panelview 600 Operator Interface Panel 340KB Memory product

Brand Name : Allen Bradley (AB)

Model Number : 2711-B6C1

Place of Origin : USA

MOQ : 1

Price : negotiable

Payment Terms : TT West Union

Supply Ability : 100

Delivery Time : 2-3 work days

Packaging Details : New in original box

Brand : Honeywell

Model : 2711-B6C1

Product Name : Panelview

Series : 2711

Rev : A

PLUS : 600

Weight : 6lb

Memory : 340KB

Contact Now

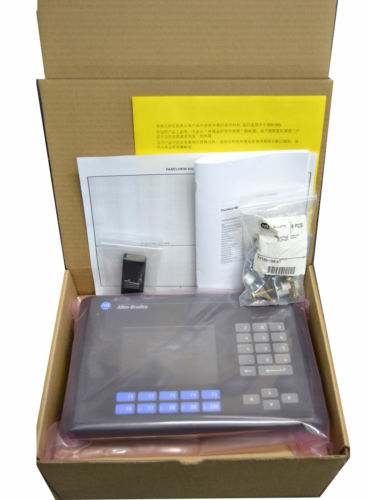

HMI Touch Screen AB Allen Bradley 2711-B6C1 PanelView 600 OPERATOR INTERFACE PANEL

2711-B6C1 PARAMETER

The 2711-B6C1 is an AB Panelview 600.

This 2711-B6C1 terminal has a 5-inch Color Display. The user is able to input data using the Keypad/Touchscreen of the 2711-B6C1.

The 2711-B6C1 allows the operator to connect using Panelbuilder 32 software and a Remote I/O and RS-232 Printer communication port with a 2711-NC13 communication cable.

The 2711-B6C1 is powered using 85-264 volts AC power. This unit has the following internal memory: 240 kilobytes. If applicable, this unit has an internal backlight replacement part number of 2711-NL5.

The approximate shipping weight and dimensions of the 2711-B6C1 are 6 lbs. and 14 x 11 x 8 in. The most common Series are: A, B, C, D, E, F, G, H, I, J, K, and L and the most common firmware include 1.00-4.48.

The Remote I/O terminals of 2711-B6C1 connect to a PLC or SLC 500 controller (via a 1747-SN module) along with ControlLogix system (via 1756-DHRIO) within the 1771 Remote I/O system. Application files are downloaded or uploaded using PanelBuilder32 by using Remote I/O Pass Through, or directly via the particular on-board RS-232 printing device port, or which has a PC memory minute card.

QUICK DETAILS

Brand :Allen Bradley (AB)
Model : 2711-B6C1
Place of Origin : USA

DESCRIPTION

Touch Display Screen
MONITOR
OPERATOR INTERFACE PANEL

SPECIFITIONS

PART NUMBER:	2711-B6C1
PRODUCT LINE:	Panelview 600
DISPLAY SIZE:	5 in.
DISPLAY COLOR:	Color
INPUT TYPE:	Keypad/Touchscreen
COMMUNICATION:	Remote I/O and RS-232 Printer
INPUT POWER:	85-264 VAC
SOFTWARE:	Panelbuilder 32
MEMORY:	240 KB
BACKLIGHT:	2711-NL3
COMMUNICATION CABLE:	2711-NC13
SHIPPING WEIGHT:	6 lbs.
SHIPPING DIMENSIONS:	14 x 11 x 8 in
SERIES:	A, B, C, D, E, F, G, H, I, J, K, and L
FIRMWARE:	1.00-4.48

Terminal Types

PanelView terminals are available in a variety of options.

Display size and type (monochrome, grayscale, color)
Operator input (touch screen or keypad)
Communication port (DH-485, RS-232, remote I/O, DH+, ControlNet, DeviceNet, Ethernet, EtherNet/IP, DF1)
RS-232 printer port support

In addition, some terminals are available with:

AC or DC power (L1 at the end of a catalog number indicates a DC terminal, for example, 2711-B5A1L1, or -T9C1L1).
stainless steel bezel available on PanelView 550 keypad or keypad & touch terminals
