Pneumatic Electronic Pressure Switch Norgren 0860810000000000 Switching
pressure -1 ... 10 bar
| Port size: | G1/8 |
| Switching pressure difference: | -1 ... 10 bar |
| Output: | 2 x PNP |

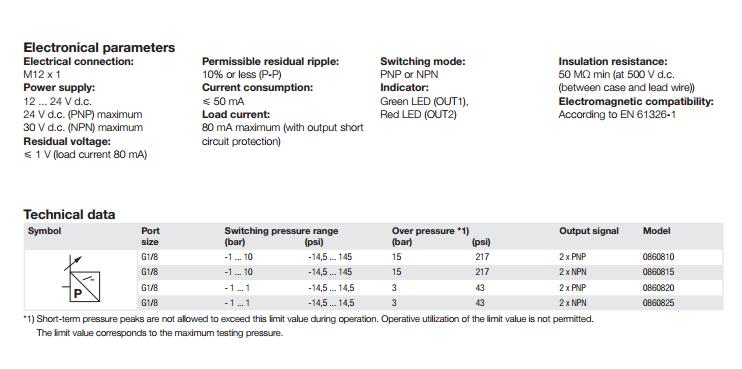

Technical Details
| Medium: | medium filtered, lubricated or non-lubricated compressed air, neutral and incombustible gases |
| Port size: | G1/8 |
| Operating temperature: | 0 ... 50 °C |
| Operating temperature (fluid): | 0 ... 50 °C |
| Electrical connection: | M12x1 4 pin |
| Protection class: | IP65 |
| Over pressure: | 15 bar |
| Switching pressure difference: | -1 ... 10 bar |

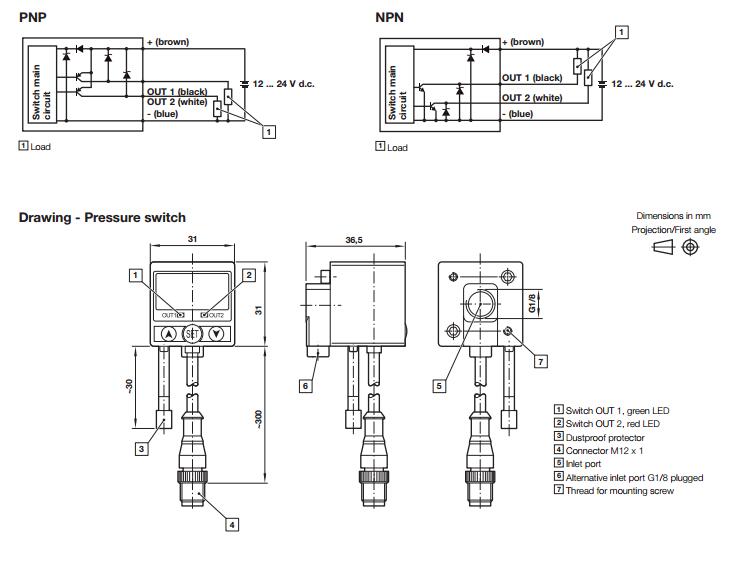

| Output: | 2 x PNP |
Technical features
Medium:
Compressed air, filtered, lubricated or non-lubricated
Pressure range:
-1 ... 10 bar (-14,5 ... 145 psi)
-1 ... 1 bar (-14,5 ... 14,5 psi)
Display:
3 1/2 digit LED
Mounting position:
Optional
Repeatability (switch output):
√ ±0,2% of full scale (FS) ±1 digit - without temperature sensitivity
Response time:
±2,5 ms
Shockproof:
100 g (980 m/s2 ), xyz
Vibrationproof:
88 g, 10 - 55 Hz, xyz
Degree of protection acc. to DIN 40050:
IP65 (with mounted dust proof protector)
Weight:
83g
Temperature sensitivity:
√ 2% of full scale (FS) of detected pressure (+25°C, +77°F)
Ambient/Media temperature:
0 ... +50°C (32 ... +122°F)
Storage temperature:
-20 ... +60°C (-4 ... +140°F)
No condensation or freezing
Air supply must be dry enough to avoid ice formation at temperature below +2°C (+35°F)
FS = full scale
Materials:
Body: PC
Similiar Models
| 0860815000000000 | 0860825000000000 |
| 0860820000000000 | 0863212000000000 |
| 0863222000000000 | 0863242000000000 |
| 0863612000000000 | 0863122000000000 |
| 0863216000000000 | 0863622000000000 |
| 0863312000000000 | 0863412000000000 |
| 0863322000000000 | 0863512000000000 |
| 0863342000000000 | 0863712000000000 |
| 0863112000000000 | 0863422000000000 |
